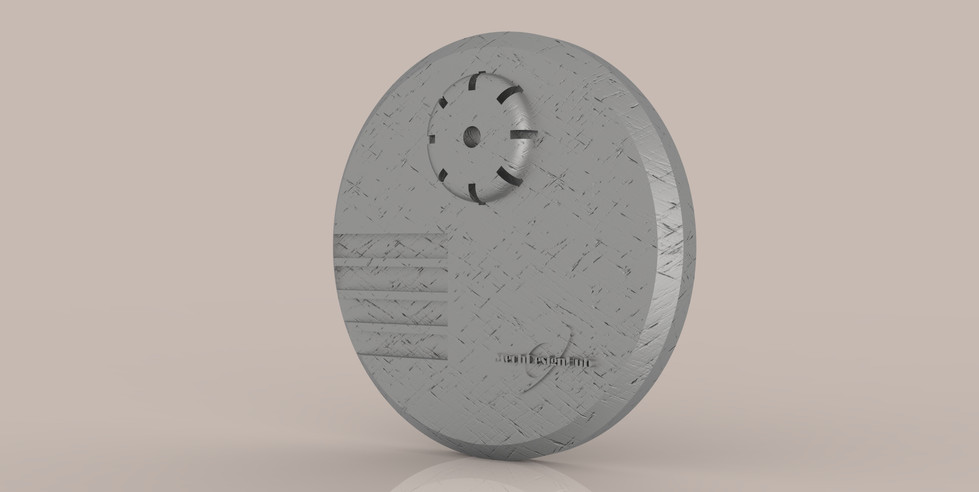

A 3D model of a mechanical disc is a digital representation of a circular object with a hole in the center, often used in mechanical engineering applications. These models are created using various 3D modeling software and can be used for a variety of purposes, such as:

Visualization:

Mechanical disc 3D models allow engineers and designers to visualize and analyze the design of a disc before it is physically manufactured.

Rapid prototyping:

3D printing technologies can be used to create physical prototypes of mechanical discs based on their 3D models.

Mechanical disc 3D models typically include features such as:

Chamfers and fillets:

These are used to smooth out sharp edges and corners, giving the model a more realistic and appealing appearance.

Holes and cavities:

Many mechanical discs have holes or cavities in their design, which can be accurately represented in the 3D model.

Material properties:

The 3D model can be assigned material properties, such as density and strength, to simulate the behavior of the actual disc.
